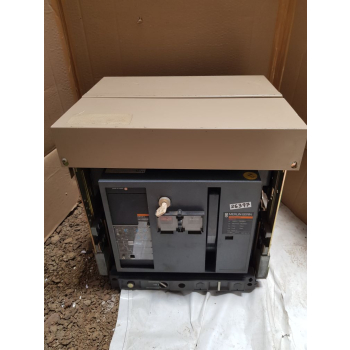

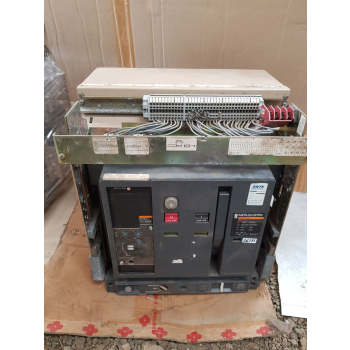

Merlin Gerin Nw08-40 H1-h2 2500A Circuit Breaker Masterpact Nw25 Hf

The Merlin Gerin NW08-40 H1-H2 2500A Circuit Breaker from Schneider Electric renowned Masterpact series. Manufactured to meet the highest standards of performance and durability, this circuit breaker is a foundation of industrial electrical distribution systems worldwide.

NW08-40 H1-H2 2500A Circuit Breaker

NW08-40 H1-H2 2500A Circuit Breaker, part of the Masterpact NW25 HF lineup, exemplifies Schneider Electric assurance to innovation and quality. With a rated operational voltage (Ue) of 690V and a maximum rated insulation voltage (Ui) of 1000V, it ensures robust performance even in demanding electrical conditions. Compliant with IEC 60947-2 standards for 50Hz and 60Hz frequencies, this breaker is designed to handle continuous and fault currents with exceptional efficiency and reliability. Key to its capabilities is its impressive breaking capacity. It boasts a short-circuit withstand capacity (Icw) of 85kA for 1 second and a peak withstand current (Icm) of 187kA, ensuring rapid and reliable interruption of electrical faults to safeguard equipment and personnel. The NW08-40 H1-H2 model specifically supports a rated current (In) of 2500A, making it suitable for high-power applications where uninterrupted operation is critical.

Designed for ease of installation and maintenance, the NW08-40 H1-H2 features a motor reducer (Motoreducteur) operating at 200/240V AC, enhancing operational flexibility and ensuring smooth switching operations. It supports voltage ratings of 200/250V AC or DC, accommodating a wide range of electrical configurations with ease. Weighing just 41 kg, it combines robust construction with lightweight design, making installation and handling efficient and straightforward. The Merlin Gerin NW08-40 H1-H2 2500A Circuit Breaker offers inclusive protection features and operational benefits. It includes advanced monitoring and control capabilities to optimize electrical distribution and enhance system reliability. The breakers Type designation ensures compatibility with various industrial applications, further enhancing its versatility and usability across different sectors.

The Merlin Gerin NW08-40 H1-H2 2500A Circuit Breaker Masterpact NW25 HF is not just a component of your electrical infrastructure but a reliable partner in ensuring continuous power distribution and protection. With Schneider Electric reputation for excellence and innovation behind it, this breaker delivers reliability, and efficiency, making it crucial choice for industrial facilities worldwide.

Explore the capabilities of the Merlin Gerin Masterpact Nw25 H1 Circuit Breaker 2500A 1000V 50/60Hz, a robust solution designed for high-performance electrical distribution. With a rated current of 2500A and an insulation voltage up to 1000V, this breaker ensures reliable operation in various industrial conditions. Compliant with IEC standards for both 50Hz and 60Hz frequencies, it offers exceptional short-circuit withstand capabilities and peak current handling to safeguard critical equipment.
