Merlin Gerin Masterpact Nw25 H1 Circuit Breaker 2500A 1000V 50/60Hz

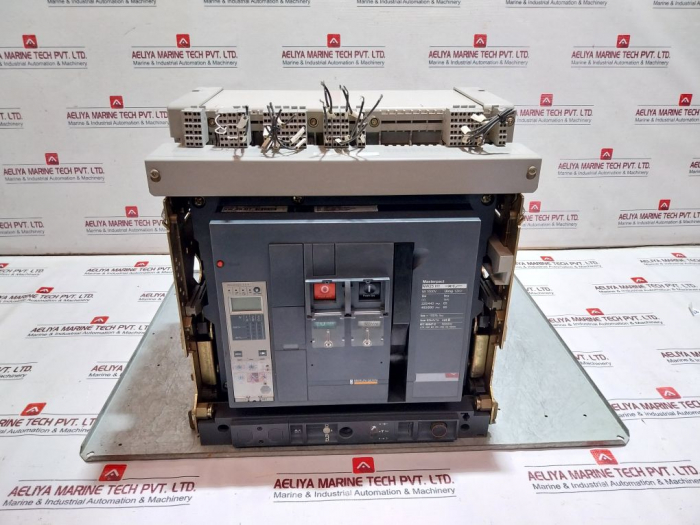

Gerin Masterpact NW25 H1 Circuit Breaker

The Merlin Gerin Masterpact NW25 H1 Circuit Breaker, manufactured by Schneider Electric, stands out as a robust and reliable solution for high-demand electrical applications. Rated at 2500A and capable of operating at up to 1000V with frequencies of 50/60Hz, this circuit breaker is customized for industrial conditions that require superior protection and consistent performance. It incorporates advanced Micrologic 5.0A technology, which enhances its operational efficiency and safety features, making it an excellent choice for modern power distribution systems. One of the key features of the NW25 H1 is its impressive interrupting capacity (Icu) and short-circuit withstand capacity (Icw). With an Icu and Ics rated at 100%, and an Icw of 65ka for 1 second, this circuit breaker can handle significant fault currents, ensuring the protection of electrical systems from potential damage. The breakers Ui rating of 1000V and Uimp rating of 12kv further emphasize its suitability for high-voltage applications, providing reliable insulation and surge protection.

The NW25 H1 is designed in accordance with IEC 60947-2 standards, guaranteeing compliance with international safety and performance regulations. This compliance ensures that the circuit breaker meets stringent criteria for electrical safety, reliability, and durability, making it a dependable component in any electrical setup. The category B classification signifies its robust construction and capability to perform under demanding conditions. The integration of the Micrologic 5.0A control unit into the NW25 H1 enhances its functionality by providing precise protection and monitoring capabilities. This advanced control unit allows for real-time data collection and analysis, enabling predictive maintenance and reducing the likelihood of unexpected failures. Additionally, the Micrologic 5.0A supports a variety of functions such as overcurrent protection, ground fault protection, and more, customized to safeguard electrical installations effectively.

Versatility is another characteristic of the Masterpact NW25 H1. It is compatible with various auxiliary voltage options, including Mch (200-240V AC), Mx (200-250V AC/DC), Mx-xf (200-250V AC/DC), and Mn (200-250V AC/DC), providing flexibility in installation and operation. This range of auxiliary voltage options ensures that the circuit breaker can be seamlessly integrated into different electrical systems, regardless of the specific voltage requirements. The construction and design of the NW25 H1 emphasize durability and ease of use. Weighing 89 kg, it is built to withstand the rigors of industrial conditions while remaining manageable for installation and maintenance. The motor mechanism (Mch/Xm) supports a wide frequency range of 50-400Hz, ensuring consistent performance across various applications and contexts. Additionally, the product is marked with identifiers such as 04441862Ea and 033662, which assist in easy identification and inventory management.

The Merlin Gerin Masterpact NW25 H1 Circuit Breaker is a high-performance, reliable solution designed to meet the harsh demands of modern industrial electrical systems. Its combination of advanced Micrologic 5.0A technology, high interrupting and withstand capacities, and versatile voltage compatibility makes it a precious component for ensuring the safety and efficiency of electrical installations.
