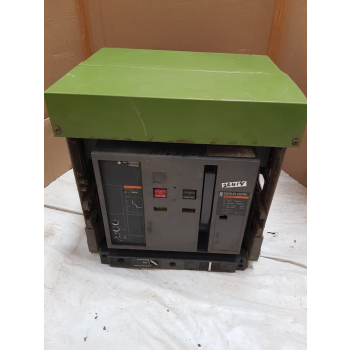

Merlin Gerin Masterpact M16 H1 1600A Circuit Breaker 380/440V 480/690V

M16 H1 Str 38 S Circuit Breaker

The Merlin Gerin Masterpact M16 H1 Circuit Breaker is a highly reliable and efficient electrical device designed for industrial applications. With a rated current of 1600A, this circuit breaker is capable of handling substantial electrical loads, making it ideal for large-scale operations. It operates within a voltage range of 380/440V to 480/690V and is designed to function at a frequency of 50/60Hz, ensuring compatibility with various electrical systems. The Masterpact series is renowned for its robust construction and advanced technology, which together ensure better performance and durability. This circuit breaker complies with the IEC 947-2 standards, underscoring its adherence to international safety and performance benchmarks.

Advanced Features

One of the standout features of the Merlin Gerin Masterpact M16 H1 is its high breaking capacity, with an ultimate breaking capacity (Icu) of 65kA and a service breaking capacity (Ics) also at 65kA. This ensures the circuit breaker can effectively interrupt high fault currents without damage. The device is equipped with the STR 38 S trip unit, which provides precise and reliable protection against overloads, short circuits, and other electrical faults. Additionally, the circuit breaker has a rated short time withstand current (Icw) of 65kA for 0.5 seconds, which enhances its resilience and reliability in the face of electrical faults. These features make the M16 H1 a robust and dependable solution for protecting electrical circuits in industrial conditions.

Applications and Benefits

The Merlin Gerin Masterpact M16 H1 Circuit Breaker is widely used in various industries due to its high performance and reliability. It is particularly beneficial in settings where electrical stability and safety are vital, such as manufacturing plants, power generation facilities, and large commercial buildings. The breaker’s ability to handle high voltages and currents makes it suitable for protecting critical electrical infrastructure. Moreover, its compliance with international standards ensures it meets stringent safety requirements, providing composure to users. The advanced trip unit and high breaking capacities contribute to minimizing downtime and maintenance costs, making the M16 H1 not only a reliable but also a cost-effective solution for modern industrial applications.

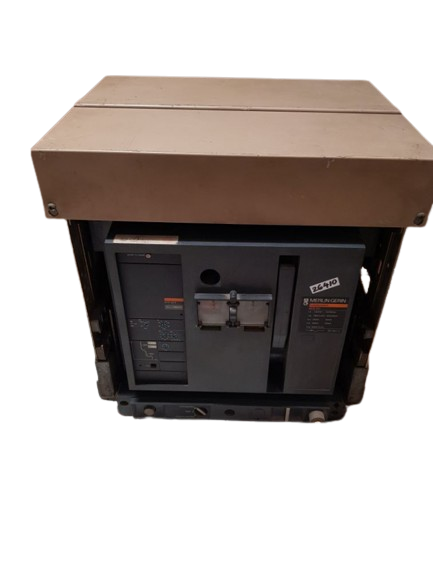

For a similar product that offers exceptional performance and reliability in industrial applications, consider the Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker 1000V 50/60Hz. With the same 1600A rating and compatibility with 1000V systems at 50/60Hz, the M16 H1 model also features advanced trip units and high breaking capacities, ensuring robust protection for your electrical infrastructure. Explore more about the Merlin Gerin Masterpact M16 H1 Circuit Breaker for a dependable solution that meets your demanding electrical needs.
