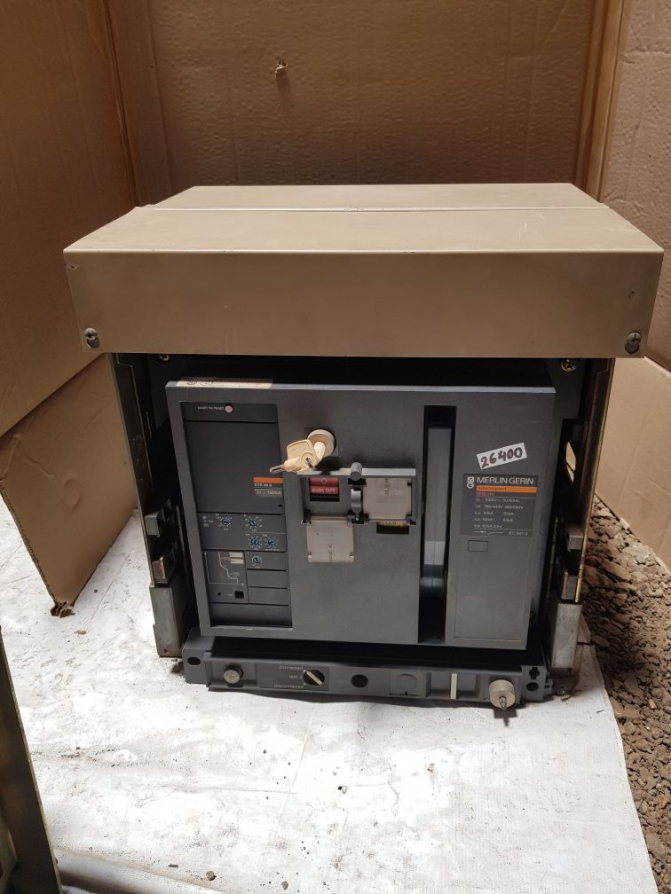

Merlin Gerin Masterpact M16 H1 1600A Circuit Breaker 1000V 50/60Hz

The Merlin Gerin Masterpact M16 H1 1600A Circuit Breaker is an advanced solution designed to ensure the safe and efficient management of electrical systems in industrial and commercial contexts. This circuit breaker is capable of handling high electrical loads with a rated current of 1600A, making it suitable for large-scale applications. Operating at a voltage of up to 1000V with a frequency of 50/60Hz, it is versatile enough to meet various regional and industrial standards. The devices robust construction and reliable performance make it an essential component for maintaining the integrity and safety of electrical systems.

Masterpact M16 H1 Circuit Breaker

The Masterpact M16 H1 boasts impressive specifications, including a breaking capacity (Icu) and service breaking capacity (Ics) of 65ka, ensuring that it can effectively interrupt high fault currents. This level of performance helps protect electrical installations from damage due to short circuits or other electrical faults. The circuit breakers rated operational voltage (Ue) ranges from 380/440V to 480/690V, offering flexibility for different operational environments. Additionally, the device meets the rigorous requirements of IEC 947-2 standards, ensuring compliance with international safety and performance regulations. The integrated STR 38 S trip unit further enhances the reliability of the Masterpact M16 H1, providing precise protection and monitoring of electrical circuits.

Features and Benefits of the Masterpact M16 H1

One of the key features of the Merlin Gerin Masterpact M16 H1 is its high short-circuit withstand capacity (Icw) of 65kA for 0.5 seconds. This capability ensures that the circuit breaker can endure high fault currents for a short duration, which is critical for protecting downstream equipment and maintaining the stability of the electrical network. The devices advanced trip unit, the STR 38 S, provides intelligent protection by monitoring electrical parameters and executing rapid disconnection in the event of an overload or fault condition. This smart functionality helps prevent potential damage and reduces the risk of electrical fires.

The Masterpact M16 H1 is designed with ease of installation and maintenance in mind. Its modular construction allows for straightforward integration into existing electrical panels and systems. The circuit breaker is also equipped with features that facilitate quick and safe maintenance, minimizing downtime and ensuring continuous operation of critical systems. Moreover, the Masterpact series is known for its durability and long service life, providing a cost-effective solution for managing high-capacity electrical circuits over time.

Application Scenarios and Industry Use Cases

The Merlin Gerin Masterpact M16 H1 1600A Circuit Breaker is suitable for a wide range of applications across various industries. In industrial applications, it is commonly used to protect heavy machinery and equipment that require a high degree of electrical reliability. It’s high breaking and withstand capacities make it ideal for use in manufacturing plants, where large motors and transformers need protection from electrical faults. The circuit breaker ability to operate efficiently at different voltage levels (380/440V and 480/690V) further extends its applicability, making it a versatile solution for various industrial conditions.

In commercial buildings, the Masterpact M16 H1 ensures the safety of critical electrical infrastructure, such as HVAC systems, elevators, and lighting circuits. Its advanced protection features help prevent electrical outages and equipment failures, contributing to the overall operational efficiency of the facility. Additionally, the circuit breakers compliance with Iec 947-2 standards ensures that it meets global safety and performance criteria, making it suitable for international projects and installations. Utility companies also benefit from using the Masterpact M16 H1 in their substations and distribution networks, where reliable protection of electrical circuits is dominant to maintaining uninterrupted power supply to end-users.

Overall, the Merlin Gerin Masterpact M16 H1 1600A Circuit Breaker stands out as a reliable and high-performance solution for managing high-capacity electrical circuits in various industrial and commercial applications. Its robust design, intelligent protection features, and compliance with international standards make it a trusted choice for ensuring the safety and efficiency of electrical systems worldwide.
