Merlin Gerin Masterpact Nw20 H1 Circuit Breaker Micrologic 6.0A 2000A

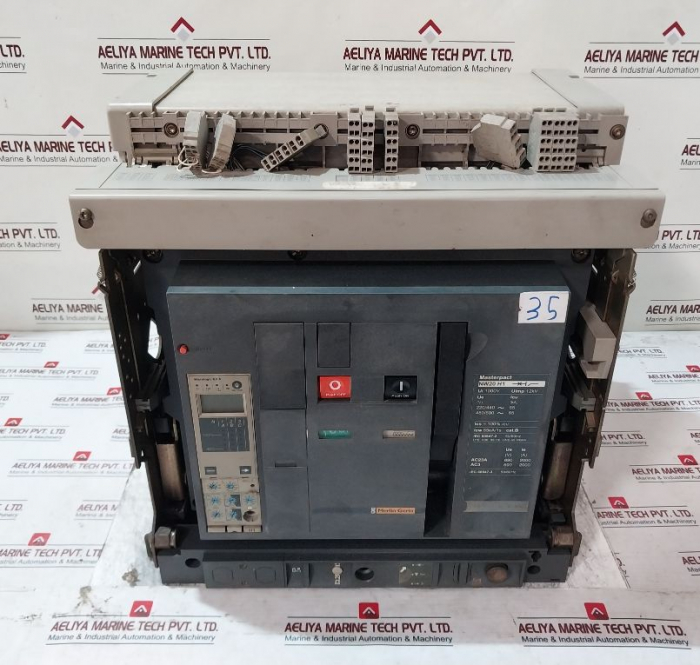

Micrologic 6.0A NW20 H1 Circuit Breaker

The Merlin Gerin/Schneider Masterpact Micrologic 6.0A Nw20 H1 Circuit Breaker exemplifies Schneider Electric assurance to precision manufacturing and electrical safety. Designed to manage currents up to 2000A, this breaker is ideal for industrial applications where robust circuit protection is dominant. Featuring Micrologic 6.0A technology, it integrates advanced digital capabilities to monitor electrical parameters with better accuracy, ensuring optimal performance and reliability in critical environments. Manufactured to meet peak international standards, the Masterpact Nw20 H1 complies with IEC 60947-2 and IEC 60947-3, guaranteeing compatibility and adherence to global electrical regulations. Its impressive interrupting capacity (Icu) of 100% Ics at 100ka ensures effective fault management, safeguarding equipment and personnel against electrical hazards. With a short circuit withstand capacity of 65kA for 1 second (Icw), categorized as B, it maintains operational integrity under extreme conditions, minimizing downtime and enhancing operational continuity.

The NW20 H1 breaker supports a maximum operational voltage (Ui) of 1000V, and a surge withstand capability (Uimp) of 12kV, making it suitable for a wide range of industrial power systems. Its robust construction and high-quality materials ensure durability and reliability, even in challenging environments. Weighing 83.300 kg, it is designed for stability and longevity, accommodating rigorous industrial demands while facilitating installation and maintenance processes. As part of Schneider Electric Masterpact series, the NW20 H1 leverages advanced technology to optimize energy management and operational efficiency. Its compatibility with 50/60Hz frequency systems further enhances its versatility, allowing seamless integration into various industrial contexts worldwide. Whether used in manufacturing facilities, power generation plants, or commercial infrastructure, this breaker delivers consistent performance and safety.

Installation and integration of the Masterpact NW20 H1 are streamlined, due to its design and user-friendly features. It supports MCH 200/240V AC motor mechanisms, ensuring reliable operation and facilitating remote management capabilities. Each unit is exactly crafted to Schneider Electric exacting standards, undergoing rigorous quality control checks to uphold reliability and performance excellence. Manufactured with precision and expertise, this Circuit Breaker is backed by Schneider Electric global reputation for innovation and reliability. Certified components such as the 04441862Ea and 033662 underscore its adherence to international safety standards, while the inclusion of GH800017Aa and K07214 20312 ensures compliance with regulatory requirements.

The Masterpact Micrologic 6.0A NW20 H1 Circuit Breaker from Merlin Gerin/Schneider Electric is a testament to advanced technology and robust manufacturing. Designed for high-performance industrial applications, it combines advanced Micrologic capabilities with durable construction, ensuring reliable circuit protection and operational efficiency. Whether safeguarding critical infrastructure or enhancing energy management systems, this breaker sets a benchmark for safety, reliability, and technological innovation in the electrical industry.

For a reliable and high-performance circuit breaker solution, consider this product, the , Merlin Gerin NW20 H1 Micrologic 5.0A Circuit Breaker 2000A 1000V, which offers advanced protection and efficiency for your electrical systems.
