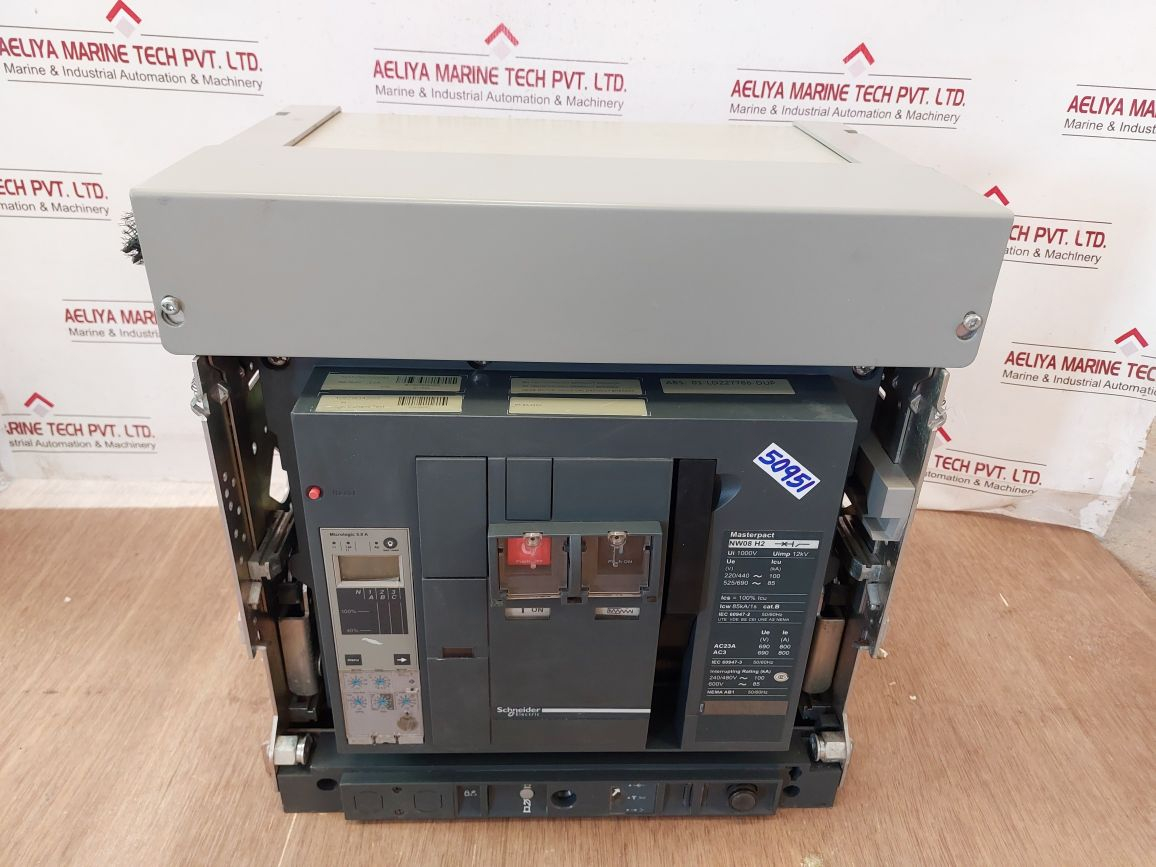

Schneider Electric Masterpact Micrologic 5.0A Nw08 H2 Circuit Breaker 800Amp

The Schneider Electric Masterpact Micrologic 5.0A NW08 H2 Circuit Breaker, rated at 800 Amps, is a robust and reliable solution for electrical protection in industrial and commercial applications. Designed to meet the highest standards of safety and performance, this circuit breaker is equipped with advanced features that ensure optimal protection and operational efficiency. The Micrologic 5.0A control unit offers precise protection and monitoring, making it an ideal choice for critical installations. The breaker is rated for a maximum voltage (Ui) of 1000V, and an impulse withstand voltage (Uimp) of 12kV, ensuring it can handle high voltage applications with ease. Whether you're working with a system voltage of 220/440V or 525/690V, the NW08 H2 offers impressive interrupting capacities of 100kA and 85kA respectively, making it a versatile and reliable choice.

Micrologic 5.0A NW08 H2 Circuit Breaker 800Amp

Masterpact NW08 H2 is designed to stand out. The circuit breaker boasts an Ics value that equals 100% of its Icu, signifying its robustness in maintaining short-circuit strength even after fault interruptions. The Icw rating of 85kA for 1 second further emphasizes its capability to withstand high fault currents, providing a high level of safety and reliability. Compliant with IEC 60947-2 and IEC 60947-3 standards, this circuit breaker meets international requirements for low-voltage switchgear and control gear. Additionally, it is classified under category B, indicating its suitability for high-breaking capacity applications. The NW08 H2 ability to perform under various electrical conditions makes it an invaluable component in ensuring the continuous and safe operation of your electrical infrastructure.



The Schneider Electric Masterpact Micrologic 5.0A NW08 H2 Circuit Breaker is specifically manufactured to provide superior protection across a range of voltages and currents. For AC applications, it supports up to 690V at 800A for both Ac23A and Ac3 categories, ensuring compatibility with various industrial standards and applications. The breaker also offers high interrupting ratings of 100kA at 240/480V and 85kA at 600V, demonstrating its capacity to handle severe fault conditions. With NEMA AB1 compliance, the breaker adheres to North American standards for low-voltage circuit breakers, further validating its reliability and performance. The breaker is also marked with an In value of 400A and a catalog number of W11492, ensuring traceability and ease of integration into your existing systems.

Weighing 86 kg, the Schneider Electric Masterpact NW08 H2 Circuit Breaker is built to last, offering a durable solution for demanding environments. Its robust construction and advanced electronic protection features make it a standout choice for industries requiring dependable and efficient circuit protection. The breaker operates efficiently at both 50Hz and 60Hz, making it versatile for global applications. Whether you're protecting industrial equipment, commercial buildings, or critical infrastructure, the Schneider Electric Masterpact Micrologic 5.0A NW08 H2 Circuit Breaker provides the performance, reliability.

For a high-performance alternative, consider the Schneider Electric Masterpact NW08 H2 Micrologic 5.0A Circuit Breaker 800A, which offers protection and advanced monitoring features ideal for industrial and commercial applications.
