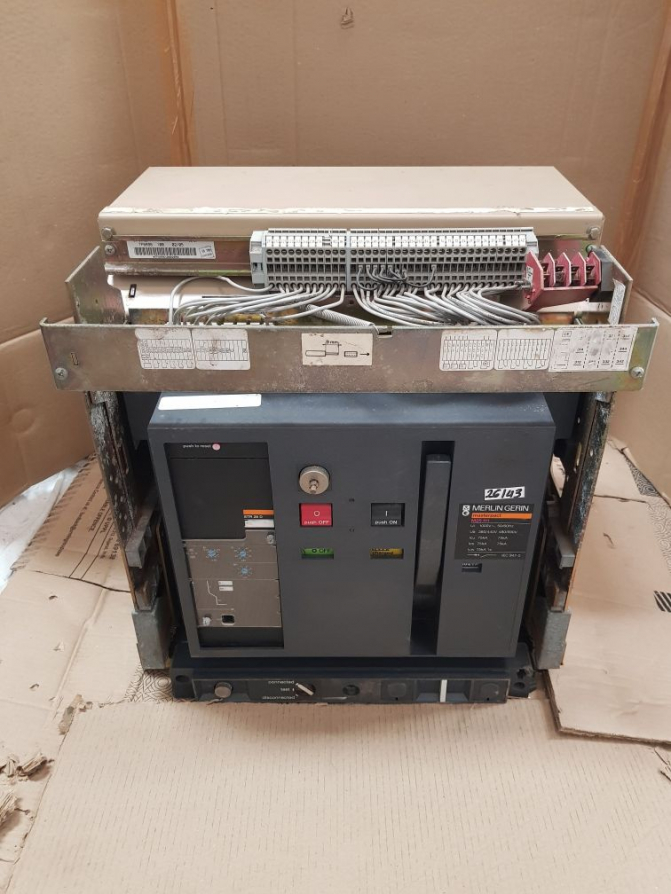

Merlin Gerin M25 H1 Circuit Breaker 380/440V 480/690V 2500Amp

The Merlin Gerin M25 H1 Circuit Breaker, a part of the admired Masterpact series, epitomizes reliability and high performance in industrial circuit protection. Designed to handle significant electrical loads, this circuit breaker is rated at 2500A, making it suitable for demanding applications across various industries. Its robust construction and advanced features ensure optimal performance and safety, complying with the rigorous IEC 947-2 standard. Manufactured for versatile operation, the M25 H1 supports dual voltage ratings of 380/440V and 480/690V, accommodating a broad range of electrical systems. This adaptability makes it an ideal choice for facilities with varying voltage requirements. The breakers impressive interrupting capacity (Icu) and service short-circuit withstand current (Ics) are both rated at 75kA, ensuring that it can handle extreme fault conditions without compromising the safety and continuity of the electrical system.



One of the standout features of the Merlin Gerin M25 H1 is its STR 28 D electronic trip unit, which provides precise protection settings and enhances the breakers capability to detect and respond to electrical faults. This advanced trip unit offers various protection functions, including overload, short-circuit, and ground fault protection, ensuring comprehensive safety for both equipment and personnel. The trip unit's accuracy and reliability make it a critical component in maintaining the overall integrity of the electrical system.

M25 H1 Circuit Breaker 380/440V 480/690V 2500A

Durability and longevity are at the forefront of the M25 H1 design. Constructed with high-quality materials, this circuit breaker is built to withstand harsh industrial environments. Its robust enclosure and components are designed to endure extreme temperatures, vibrations, and other challenging conditions, ensuring reliable operation over its lifespan. With a 1-second short-time withstand current (Icw) of 75kA, the M25 H1 demonstrates exceptional resilience and stability under high-stress scenarios.

The Merlin Gerin M25 H1 Circuit Breaker is a high-capacity, reliable solution for industrial electrical protection. With its advanced electronic trip unit, robust construction, and versatile voltage ratings, it is designed to meet the demanding needs of modern industrial applications. Whether used in manufacturing facilities, power distribution networks, or other critical infrastructure, the M25 H1 delivers exceptional performance, safety, and durability. The Merlin Gerin M25 H1 Circuit Breaker is the ideal choice for those seeking a reliable, high-performance solution for managing large electrical loads in industrial contexts. With its superior protection capabilities and robust design, it ensures the safety and efficiency of your electrical system.
