Hyundai Hat 25 Air Circuit Breaker 2500A 660V 50/60Hz 3 Pole

The Hyundai HAT 25 Air Circuit Breaker is manufactured by Hyundai Heavy Industries Co., Ltd., a global leader in the heavy industries sector. This robust air circuit breaker is specifically designed to handle high currents up to 2500A at 660V, making it an essential component for ensuring electrical safety and reliability in industrial contexts. Its compliance with international standards, such as Iec 60947-2 and En 60947-2, guarantees its better performance and safety. Built to operate at a frequency of 50-60Hz, the Hyundai HAT 25 is highly versatile and suitable for various electrical systems.



This breaker features a high interrupting capacity, capable of handling fault conditions with a maximum of 65kA at 220-500V, 50kA at 550-660V, and 45kA at 660V. These specifications highlight its capability to protect electrical circuits from short circuits and overloads, thus preventing potential damage to equipment and ensuring operational continuity. The HAT 25 is designed with three poles, making it ideal for three-phase systems, which are common in industrial applications. It operates efficiently in ambient temperatures up to 40°C and even 45°C, showcasing its ability to perform reliably in various environmental conditions. This adaptability makes it a perfect choice for industries operating in challenging climates or those with fluctuating ambient temperatures.

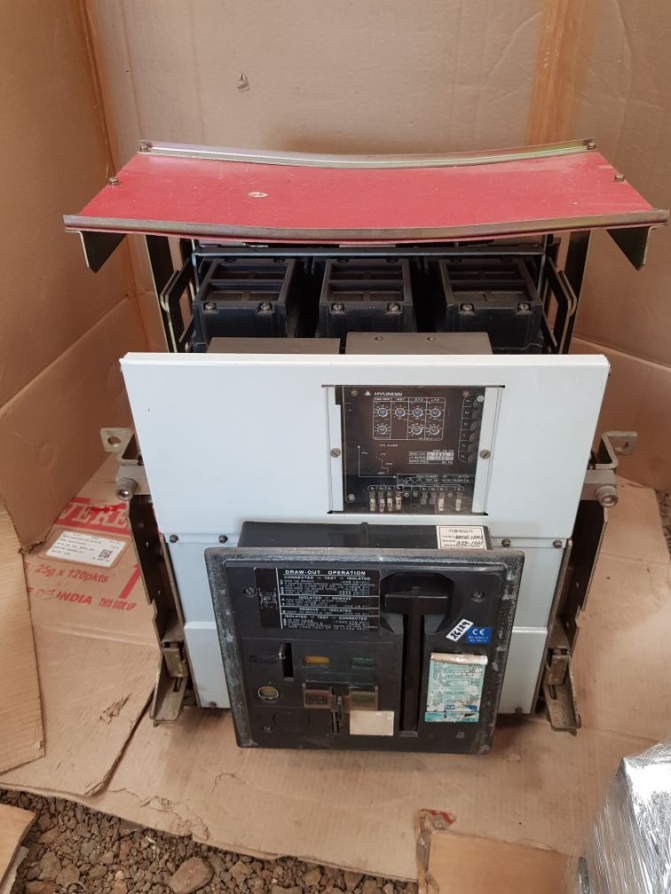

Hyundai HAT 25 Air Circuit Breaker

Moreover, the Hyundai HAT 25 is equipped with a robust short-time current rating, handling 50kA for 1 second and 45kA for 3 seconds. This feature ensures that the breaker can sustain short-duration high current flows, providing ample protection and preventing circuit damage during transient faults. The breaker’s base current (Io) is rated at 1684A, with a current transformer (CT) rating of 2000/5A, ensuring accurate measurement and control of electrical parameters. Designed for modern electrical systems, the HAT 25 supports both AC and DC control voltages, ranging from 100-250V. This dual compatibility enhances its flexibility and allows it to integrate seamlessly into various control and automation systems. Additionally, it features a DC rating of 24V, further expanding its range of applications and ensuring it meets the requirements of various industrial setups.

Manufactured in Korea, the Hyundai HAT 25 Air Circuit Breaker embodies the excellence and innovation that Hyundai Heavy Industries is renowned for. Each unit undergoes rigorous testing and quality control to meet the highest standards of performance and reliability. This commitment to quality ensures that the HAT 25 delivers exceptional durability and long-term operational stability, providing peace of mind to facility managers and electrical engineers. The Hyundai HAT 25 Air Circuit Breaker is a critical component for any industrial electrical system, offering unmatched protection and reliability. Its high interrupting capacity, robust construction, and compliance with international standards make it a preferred choice for safeguarding electrical infrastructure. Whether in manufacturing plants, power distribution networks, or other industrial environments, the HAT 25 ensures that electrical circuits operate safely and efficiently, minimizing the risk of electrical faults and maximizing operational uptime.

The Hyundai HAT 25 Air Circuit Breaker stands out as a powerful and reliable solution for industrial circuit protection. Its advanced features, including high current and voltage ratings, wide operational temperature range, and robust short-time current handling capabilities, make it a versatile and indispensable tool for ensuring the safety and efficiency of electrical systems. Trust in Hyundai Heavy Industries' legacy of quality and innovation with the HAT 25 and secure your industrial electrical infrastructure with confidence.

For high-capacity power distribution and reliable circuit protection, consider this product, the Hyundai Hat 25 Air Circuit Breaker 2500A 660V 50-60Hz. This robust circuit breaker is designed to handle demanding industrial conditions, ensuring safety and efficiency with its advanced features and durable construction.
