Hyundai Hat 16 Air Circuit Breaker 1600A 660 Vac 50/60Hz 3 Pole

The Hyundai HAT 16 Air Circuit Breaker, manufactured by Hyundai Heavy Industries Co., Ltd., stands out as a powerful solution for industrial electrical protection. Manufactured to handle demanding conditions, this 3-pole air circuit breaker boasts a large operational voltage of 660 VAC and a rated frequency of 50/60Hz. With a rated current of 1600A, it ensures reliable performance in high-load applications, making it an ideal choice for industries requiring consistent and safe electrical distribution. Compliant with the IEC 947-2 standard and classified underutilization category B, the Hyundai HAT 16 guarantees robust performance and adherence to international safety and quality benchmarks.

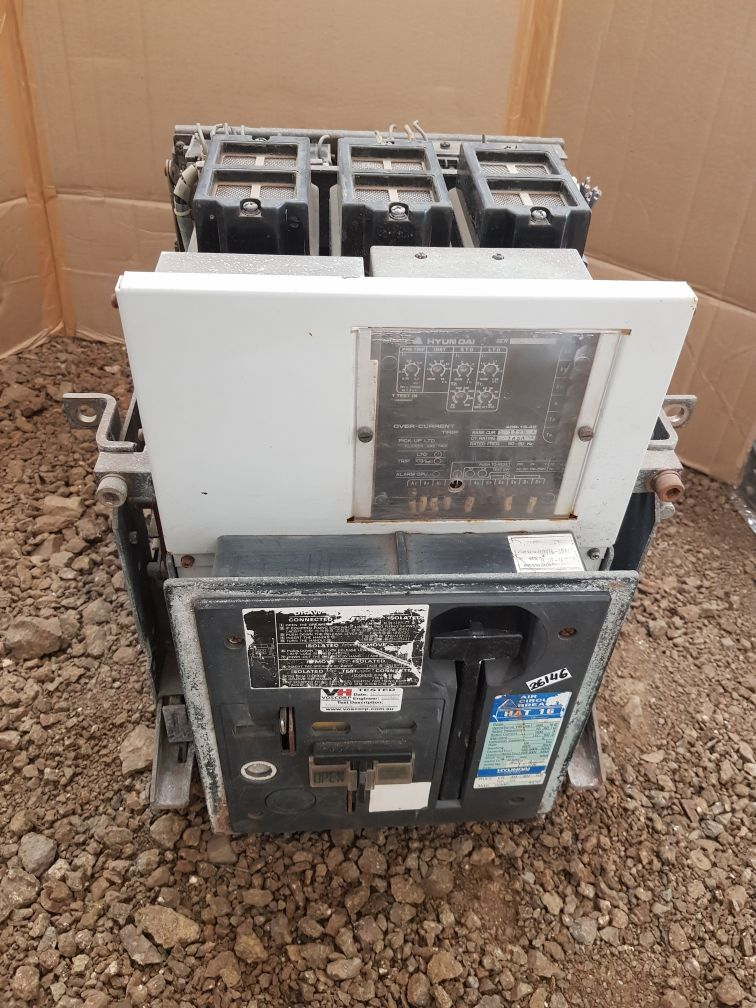

Hyundai HAT 16 Air Circuit Breaker 1600A 660 Vac

The Hyundai HAT 16 Air Circuit Breaker is designed to deliver exceptional breaking capacity, ensuring optimal protection for your electrical systems. At 660V, it offers a breaking capacity (Icu) of 35kA, while for operational voltages between 550-600V, the capacity increases to 50kA. Remarkably, at lower voltages of 220-500V, the breaker achieves an impressive 65kA, demonstrating its ability to handle severe short-circuit conditions. This capability is further enhanced by a short time withstand current (Icw) of 50kA for 1 second, providing robust protection against transient overloads and short circuits. Such specifications underline the HAT 16 efficiency in safeguarding electrical infrastructures, minimizing downtime, and enhancing operational reliability.



Equipped with an advanced over-current trip mechanism, specifically the AOR-1S-AS, the Hyundai HAT 16 Air Circuit Breaker ensures precise and timely intervention during over-current events. The base current (Io) of 1229A and CT rating (Ict) of 1600/5A ensure that the breaker responds accurately to fluctuations, maintaining system stability and preventing potential damage. Designed to operate efficiently at an ambient temperature of 45°C, the HAT 16 is well-suited for harsh industrial conditions, ensuring consistent performance even under extreme conditions. Its robust design and advanced features make it a reliable component for ensuring electrical safety and continuity in various industrial applications.

The Hyundai HAT 16 Air Circuit Breaker compliance with the IEC 947-2 standard underscores its adherence to global safety and performance benchmarks. This standardization ensures compatibility and reliability across diverse industrial settings worldwide. Hyundai Heavy Industries Co., Ltd. has engineered the HAT 16 to meet the highest quality and safety standards, providing industries with a trustworthy solution for their electrical protection needs. Its versatile design and robust specifications make it a crucial component in ensuring the integrity and safety of industrial electrical systems, thereby enhancing overall operational efficiency and safety. With the Hyundai HAT 16, industries can achieve optimal electrical protection and performance, minimizing risks and maximizing productivity.

For a similar product like the Hyundai HAT 16 3-pole Air Circuit Breaker 1600A 660 Vac 50/60Hz, Hyundai Heavy Industries Co., Ltd. offers robust solutions customized to industrial electrical needs. Engineered with a focus on reliability and performance, these air circuit breakers uphold rigid international standards such as IEC 947-2, ensuring superior electrical protection and operational safety across various industrial applications. With features like high breaking capacities, advanced over-current protection mechanisms, and flexibility in varying environmental conditions, Hyundai range of air circuit breakers, including models like the HAT 16, stands out for their efficiency and durability in safeguarding critical electrical systems.
